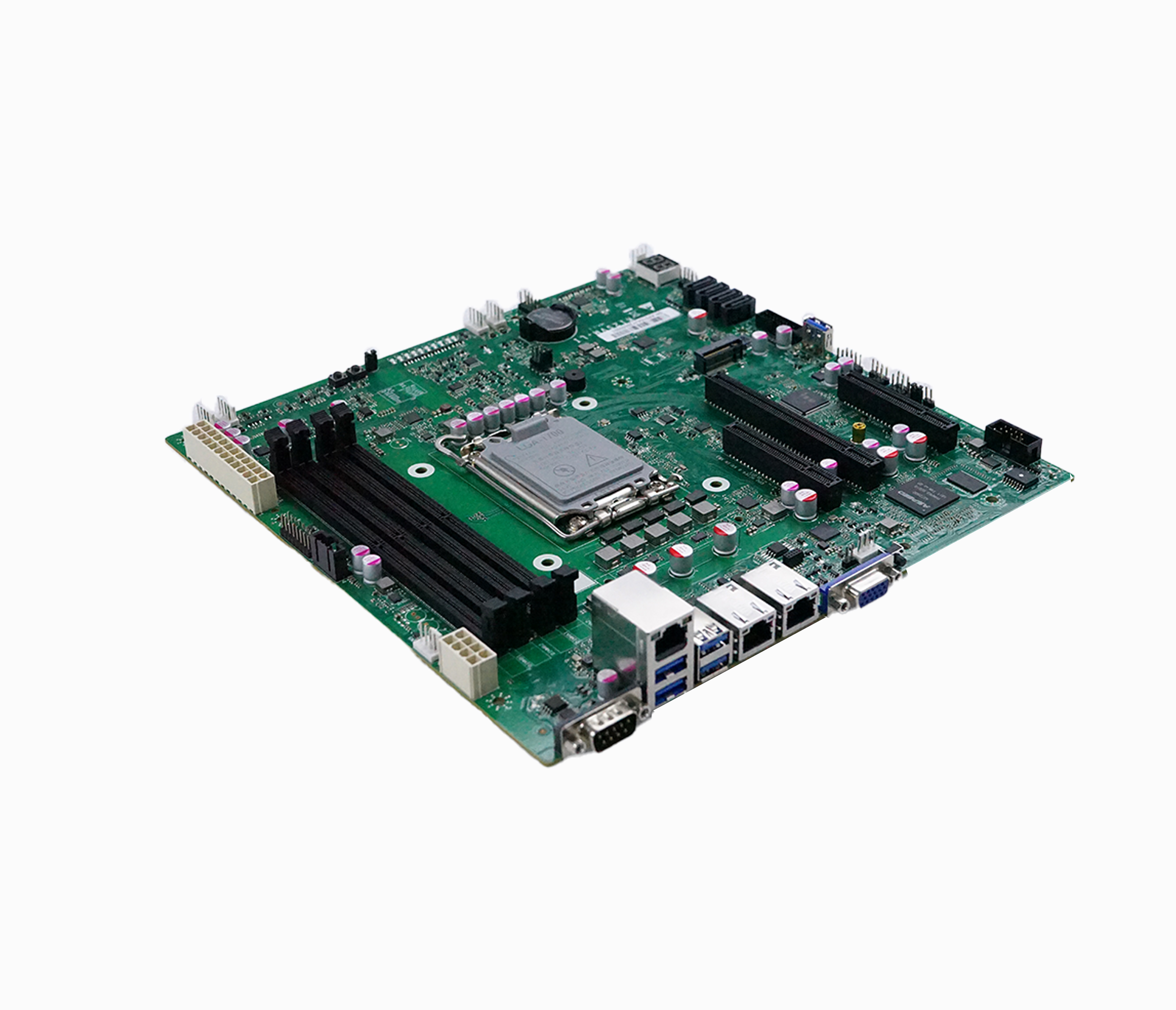

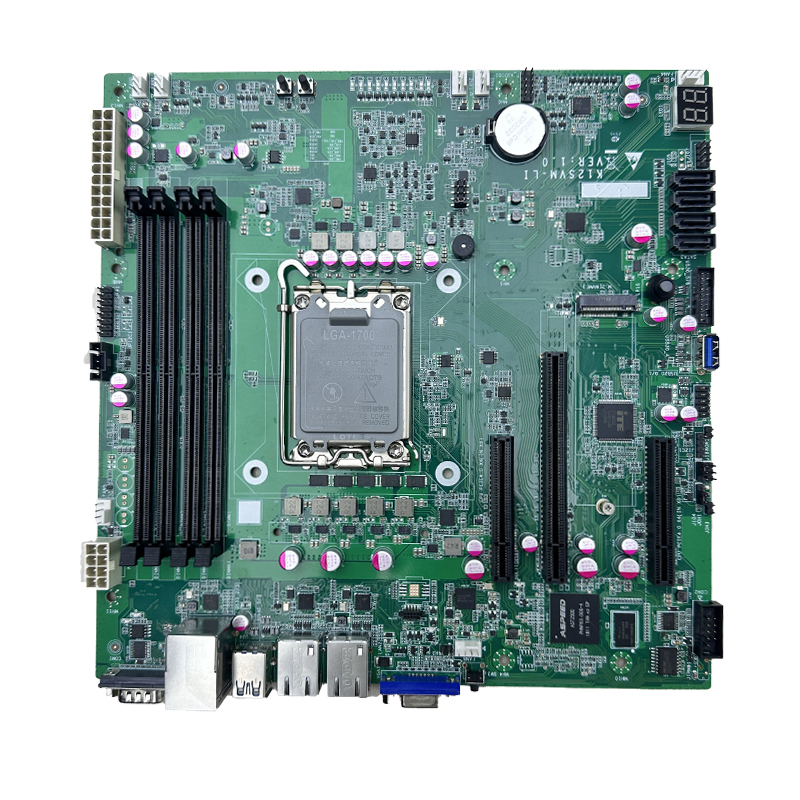

单路 LGA-1700 窄型Socket，支持 KX-7000处理器
兼容M-ATX规格，9.6“x 9.6"；
内存为4根2通道UDIMM槽,最大支持256GB DDR5 4800MHz ；
主板支持1个x8 PCIe 4.0 Slot，2个x4 PCle 4.0 Slot；
主板支持1个M.2（NVME）；
主板板载2个千兆网络控制器；

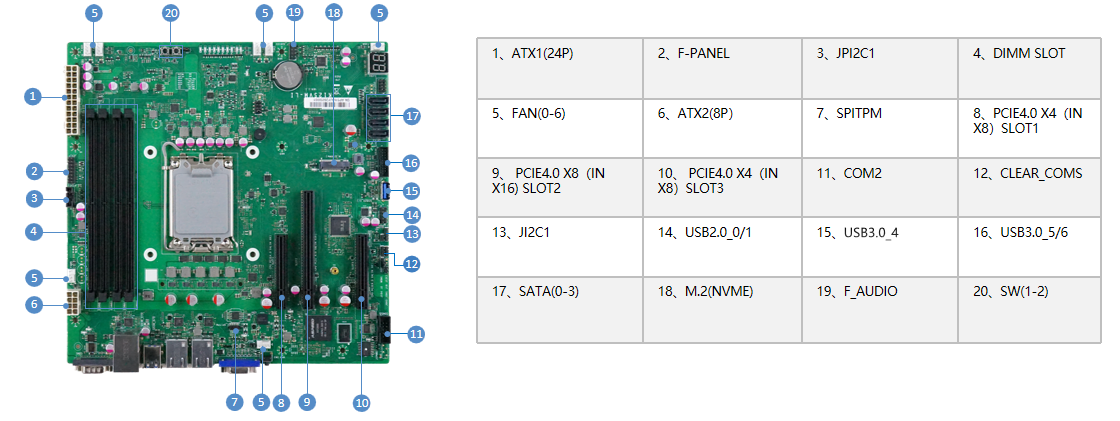

板载插针及接口介绍

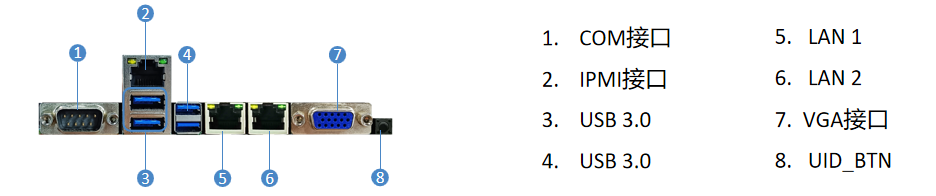

IO接口详情
| COM1 |
1 x DB9 |
| USB3.0+IPMI |
2 x USB3.0+RJ45(IPMI) |
| USB3.0 |
2 x USB3.0 |
| LAN |
2 × 标准RJ45（10/100/1000Base-T） |
| VGA |
1 x DB15 |
| PCI-E4.0 |
1 x PCI-E4.0 X8（X16 Connector) |
| PCI-E4.0 |
2 x PCI-E4.0 X4（X8 Connector) |
| AUDIO |
1 x AUDIO(Header 2 x 5 2.54mm) |
| USB 2.0 |
2 x USB ( Header 2 x 5 2.54mm) |
| USB 3.0 |
1 x USB (Type A), 2 x USB ( Header 2 x 10 2.0mm) |
| I2C |
1 x I2C (SMBUS Header 1 x 3 2.54mm) |
| COM2 |
1 x COM (Header 2 x 5 2.54mm) |
| FAN |
7 x PWM FAN（2 rear, 5front） |
| JFP |
JFP Header（2 x 8 2.54mm) |
| CPU |
KX-7000 8核心 Socket LGA-1700, supports Up to 80W TDP |
| BOIS |
32Mb UEFI |
| M.2 |
1 x M.2（NVME） |
| SATA |
4 x SATA3 |
| VGA |
1 x VGA |
| Graphics |
AST2500 |
| IPMI |
ASPEED AST2500 BMC Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Power Input |
24Pin + 8Pin |
| Memory Type |
4800MHz DDR5 UDIMM |
| Memory Capacity |
4 x DDR5 DIMM slots（2 channel） |
| DIMM Sizes |
UDIMM: 8GB, 16G, 32GB, 64GB |
| Network Controllers |
1 x Realtek RTL8211E PHY (dedicated IPMI) |
| Network Controllers |
2 x Realtek RTL8111K |
