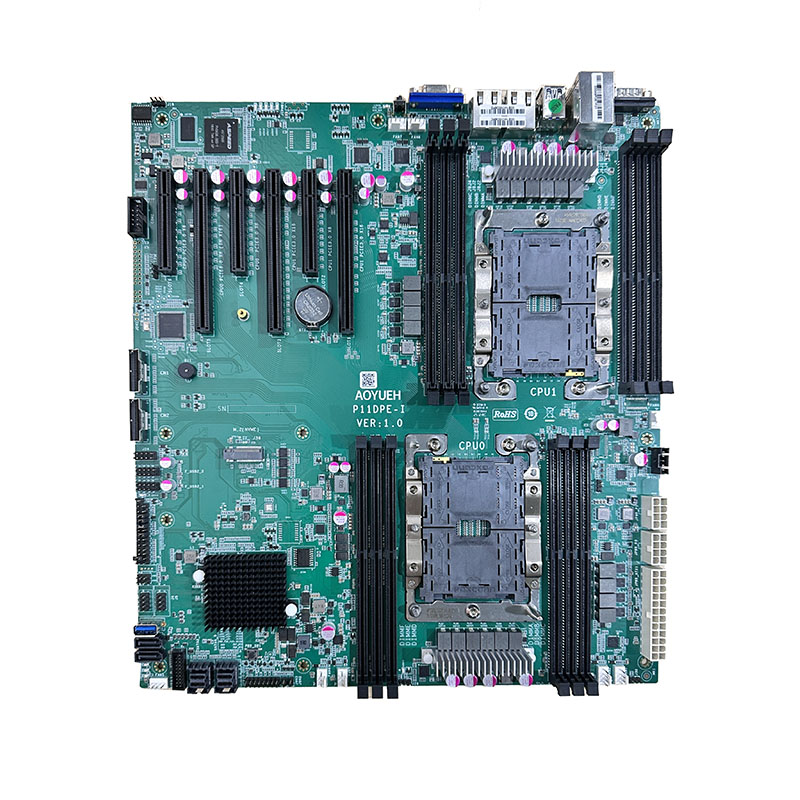

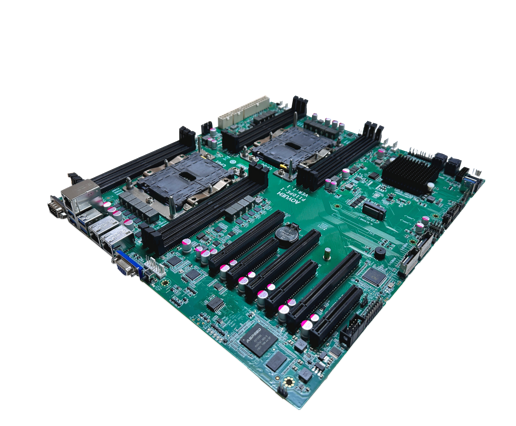

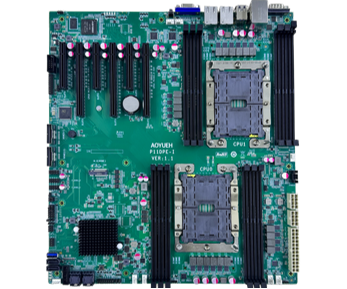

P11DPE-I双路通用主板，采用 Intel® Purley 平台(Intel® PCH C621 芯片组，搭配 双路 LGA3647 窄型Socket)， 支持英特尔二代® 至强® 可扩展处理器，支持12个RDIMM槽/M.2 NVMe/i210AT双千兆/AST2500
支持双路 LGA3647 窄型Socket，支持 2nd Intel® Xeon 可扩展处理器
Chipset采用Intel® PCH C621
兼容E-ATX规格大板，13.2“x 12"
内存为12根6通道DIMM槽,最大支持1.5TB DDR4 2933MHz ECC RDIMM和LRDIMM
主板支持2个x16 PCIe 3.0 Slot，4个x8 PCle 3.0 Slot
主板支持1个M.2（NVME）
主板板载2个千兆网络控制器

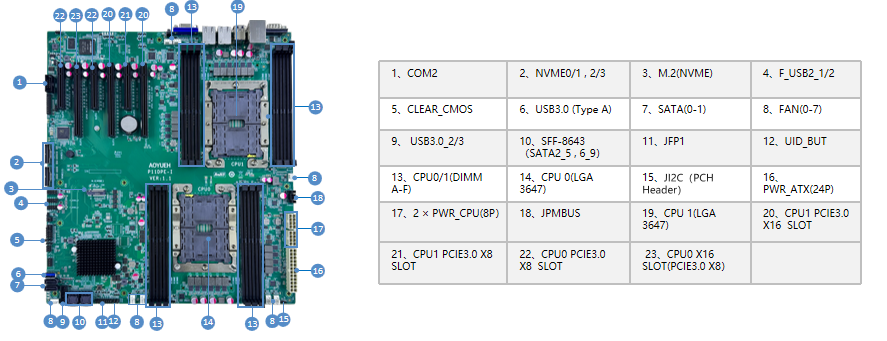

板载插针及接口介绍

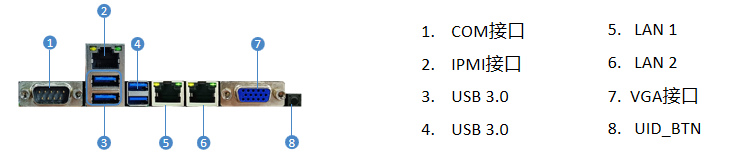

IO接口详情
| CPU |
2nd Gen Intel® Xeon® Scalable Processors ，Dual Socket LGA-3647 (Socket P) supported, supports Up to 205W TDP |
| Chipset |
Intel® C621 |
| BOIS |
256Mb UEFI |
| Memory Type |
2933/2666/2400/2133MHz ECC 3DS DDR4 LRDIMM, RDIMM |
| Memory Capacity |
12 x DDR4 DIMM slots（6 channel），Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz |
| DIMM Sizes |
LRDIMM: 64GB, 128GB ， RDIMM: 16GB，32GB，64GB, 128GB |
| COM |
1 x DB9 |
| USB3.0+IPMI |
2 x USB3.0+RJ45(IPMI) |
| USB3.0 |
2 x USB3.0 |
| LAN |
2 × 标准RJ45（10/100/1000Base-T） |
| VGA |
1 x DB15 |
| UID |
1 x UID Buttun |
| PCI-E3.0 |
3 x PCI-E3.0 X8 ，2 x PCI-E3.0 X16 ， 1 x PCI-E3.0 X8（X16 Connector） |
| USB 2.0 |
4 x USB ( Header 2 x 5 2.54mm) |
| USB 3.0 |
1 x USB (Type A), 2 x USB ( Header 2 x 10 2.0mm) |
| I2C |
1 x I2C (SMBUS Header 1 x 3 2.54mm) |
| COM |
1 x COM (Header 2 x 5 2.54mm) |
| FAN |
8 x PWM FAN（2 rear, 6front） |
| JFP |
FP Header（2 x 8 2.54mm) |
| M.2 |
1 x M.2（NVME） |
| SATA |
2 x 7Pin SATA3，8 x SATA3（SFF-8643) |
| VGA |
1 x VGA |
| Graphics |
AST2500 |
| IPMI |
ASPEED AST2500 BMC ，Support for Intelligent Platform Management Interface v.2.0 ，IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Power Input |
24Pin ATX / CPU 8Pin x 2 |
| Network Controllers |
1 x Realtek RTL8211E PHY (dedicated IPMI) |
| Network Controllers |
2 x I210AT |
